Lar Módulos SMD-Interior SMD Indoor P2.5 LED Full Color Module

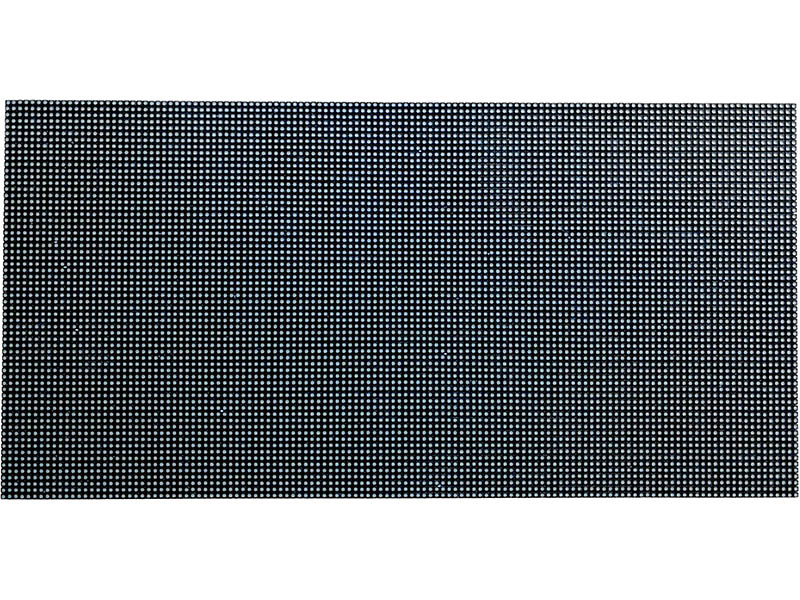

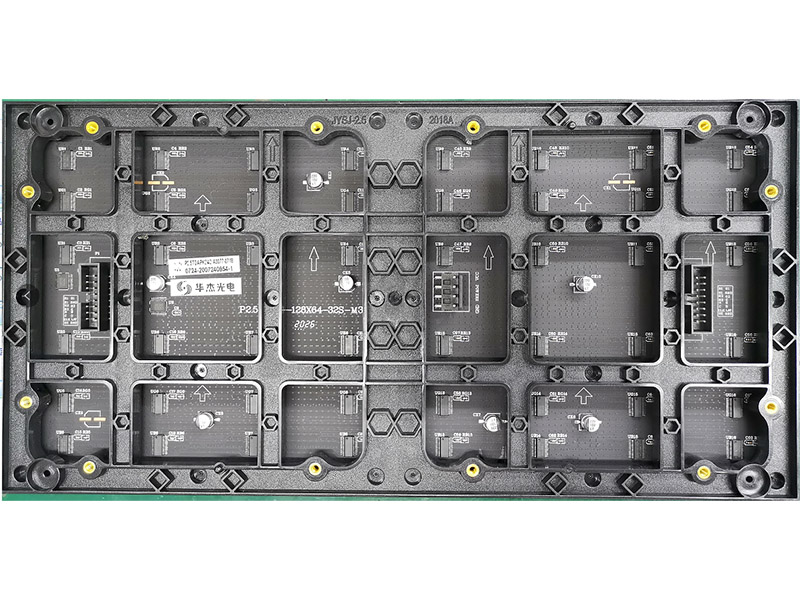

SMD Indoor P2.5 LED Full Color Module
SMD Indoor P2.5 LED Full Color Module
SMD Indoor P2.5 LED Full Color Module

SMD Indoor P2.5 LED Full Color Module

The SMD Indoor P2.5 Full Color LED Module is designed to deliver reliable, high-quality visual performance for a variety of professional and commercial indoor applications. With a pixel pitch of 2.5 mm, it balances image clarity and cost-effectiveness, making it an ideal solution for projects that require impactful displays at medium to extended viewing distances.

Parâmetros do produto

  • marca :

    Hoozoe

  • Modelo :

    SMD Indoor P2.5 LED Full Color Module

  • Pedido (MOQ) :

    50

  • Pagamento :

    TT

  • Origem do produto :

    Zhangzhou

  • Cor :

    Full color

  • Porto de embarque :

    Xiamen/Shenzhen

  • Tempo de espera :

    10 days

  • Peso :

    374g
FAÇA SUA CONSULTA AGORA

Features

Pixel Pitch:
Featuring a 2.5 mm pixel pitch, this module offers an excellent balance of image clarity and cost-efficiency, making it a versatile choice for diverse professional and commercial indoor applications.

High Resolution & Detail:
Its well-structured pixel arrangement delivers clear and vibrant visuals, capably supporting high-definition video playback, graphical content, and detailed informational displays.

Optimal Viewing Distance:
Designed for mid- to long-range viewing, it provides a seamless and comfortable viewing experience without noticeable pixelation, perfect for audiences positioned several meters away.

Reliable Technology:
Built with robust Surface-Mount Device (SMD) packaging, the module ensures consistent color reproduction, excellent screen uniformity, and dependable long-term performance.

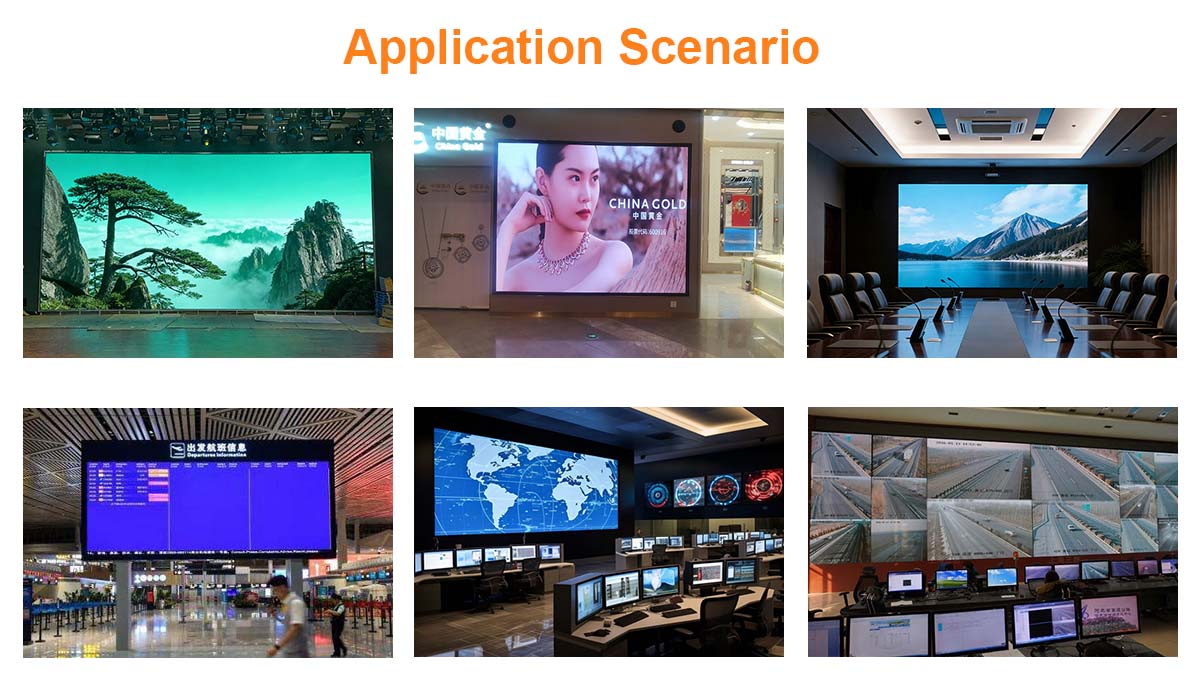

Typical Applications:
Well-suited for a variety of environments including corporate conference rooms, school auditoriums, retail stores, hotel lobbies, control centers, and indoor digital signage projects.



Parameter

  Parameter Name Product Parameter
Screen Maximum power consumption 500 W/㎡

Usage environment

 Indoor

Viewing distance

 ≥2.5m

Blind spot rate

 Less than 0.03%
Brightness > 600 cd/㎡
Average power consumption of the screen 200-250 W/㎡
Horizontal viewing angle of screen 120±10 degree

Vertical viewing angle of the screen

 120±10 degree
Module

Pixel Pitch

 2.5mm

 Pixel Density

 160000 Dots/㎡
Resolution 128x84=8192 Dots
Structural characteristics Integrated light drive system
 Pixel composition 1R1G1B
Drive mode 1/32 scan constant current drive
Input voltage 4.5-5 V

Kit materials

 Polycarbonate PC material
Weight  374 g
Power of unit module <25 W
Size (Long, Wide, and Thick) 320*160*14（mm)
Maximum current <4.5 A

Use 4.2V/5V Switching Power Supply with Load Quantity

 <8 pieces P2.5 full-color unit boards

System

Frame Frequency

 >60 frames per second

Refresh frequency

Carrying 128 points at 2400Hz or

Carrying 128 points at 1920Hz

Control mode

 Computer control, one-to-one correspondence point by point, video synchronization, real-time display

 Brightness adjustment

 256 level manual/automatic
Driver chip mode Buffer 74HC245, decoding line tube 7258, dual latch constant current chip
