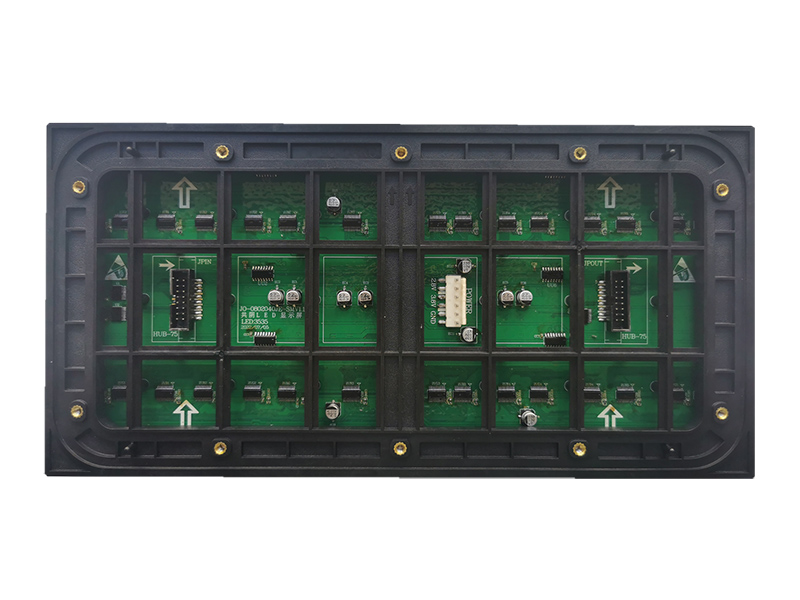

SMD Outdoor P8 LED Display Full Color Module is a highly cost-effective and durable display solution engineered for ultra-large-scale, long-distance outdoor applications. Featuring an 8mm pixel pitch, it delivers clear and recognizable visuals at very long viewing distances, making it an ideal choice for highway billboards, stadium screens, port terminals, and other installations where viewers are positioned far from the display. The module is built to IP65 protection standards and incorporates high-brightness LEDs (≥5000 cd/m²), ensuring vivid imagery and strong visual impact even under intense ambient light conditions.
marca :
HoozoeModelo :
SMD Outdoor P8 LED Display Full Color ModulePedido (MOQ) :
50Pagamento :
TTOrigem do produto :
ZhangzhouCor :
Full colorPorto de embarque :
Xiamen/ShenzhenTempo de espera :
10 daysPeso :
414gFeatures
Pixel Pitch
With an 8mm pixel pitch, this module delivers clear and recognizable content at very long viewing distances, making it especially suitable for large-scale installations where detail resolution can be balanced with significant cost savings per square meter.
High Brightness & Visibility
Equipped with high-intensity outdoor LEDs providing brightness levels of ≥5000 cd/m², it ensures vivid and stable visuals even under direct sunlight. Automatic brightness adjustment (0–100%) adapts to ambient lighting for consistent viewing quality.
Optimal Viewing Distance
Optimized for viewing distances of 15 meters and beyond, it is ideal for applications such as highway billboards, stadium scoreboards, building facades, and port information displays.
Reliable Outdoor Design
Built to IP65 standards for complete protection against dust and water ingress. The housing is constructed from robust die-cast aluminum with advanced thermal management, ensuring stable operation across a wide temperature range (-30℃ to +60℃). UV-resistant materials prevent color degradation over time.
Easy Installation & Maintenance
Modular design allows for quick assembly and flexible front/rear maintenance. Uniform brightness and color calibration are performed before shipment, guaranteeing consistency across the display.
Typical Applications
Highway advertising signs, sports venue screens, port terminal displays, building rooftop signs, and other large-format outdoor installations requiring long-range visibility and all-weather reliability.
Parameter
| Parameter Name | Product Parameter | |
| Screen | Maximum power consumption | 517 W/㎡ |
|
Usage environment |
Outdoor | |
|
Viewing distance |
≥8m | |
|
Blind spot rate |
Less than 0.03% | |
| Brightness | > 4500 cd/㎡ | |
| Average power consumption of the screen | 170 W/㎡ | |
| Horizontal viewing angle of screen | 120±20 degree | |
|
Vertical viewing angle of the screen |
120±10 degree | |
| Module |
Pixel Pitch |
8 mm |
|
Pixel Density |
15625 Dots/㎡ | |
| Resolution | 40x20=800 Dots | |
| Structural characteristics | Integrated light drive system | |
| Pixel composition | 1R1G1B | |
| Drive mode | 1/5 scan constant current drive | |
| Input voltage | 2.8-3.8V | |
|
Kit materials |
Polycarbonate PC material | |
| Weight | 414g | |
| Power of unit module | 26.5W | |
| Size (Long, Wide, and Thick) | 320*160*17（mm) | |
| Maximum current | 7.24 A | |
|
Number of modules supported by 200w power supply |
<4 pieces | |
|
System |
Frame Frequency |
>60 frames per second |
|
Refresh frequency |
3840Hz |
|
|
Control mode |
Computer control, one-to-one correspondence point by point, video synchronization, real-time display |
|
|
Brightness adjustment |
256 level manual/automatic |
|
| Driver chip mode | Buffer 74HC245, Row Driver 2019, FM6569 (3840Hz) | |

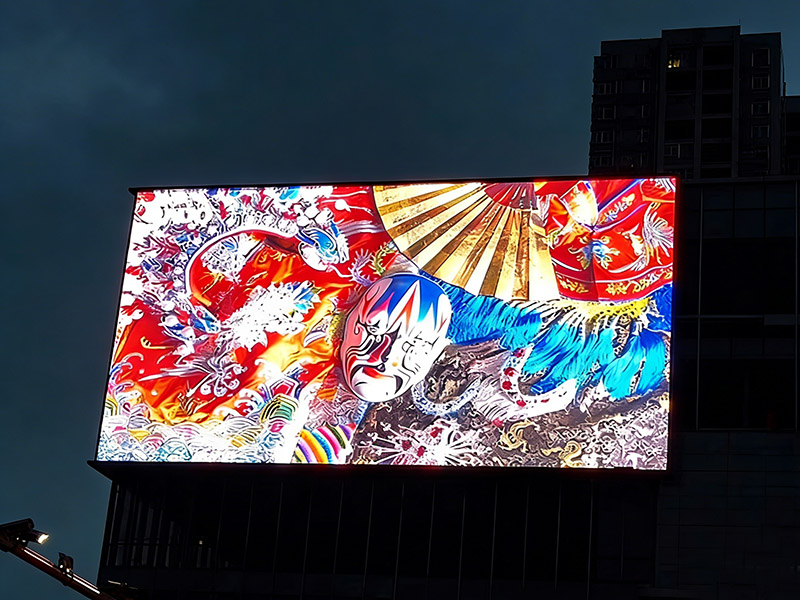

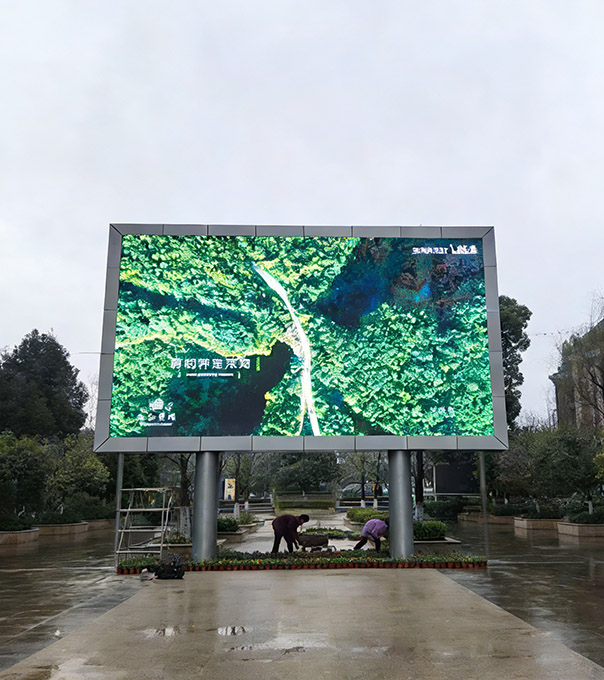

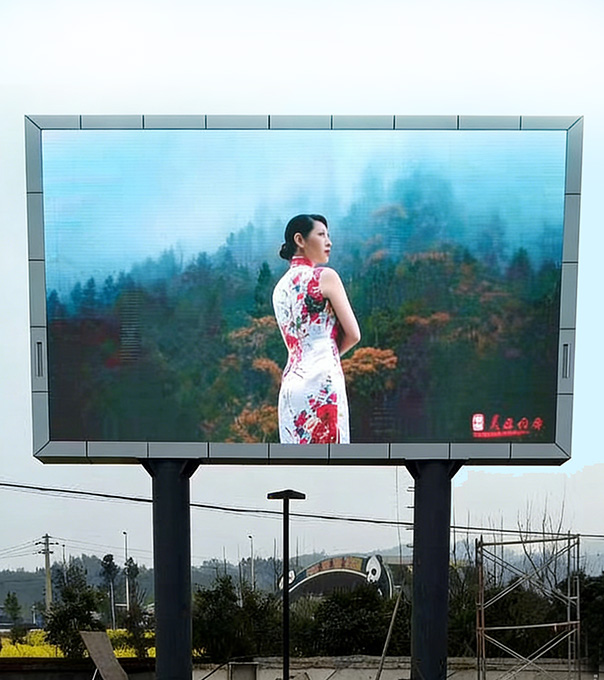

Applications Scenario
