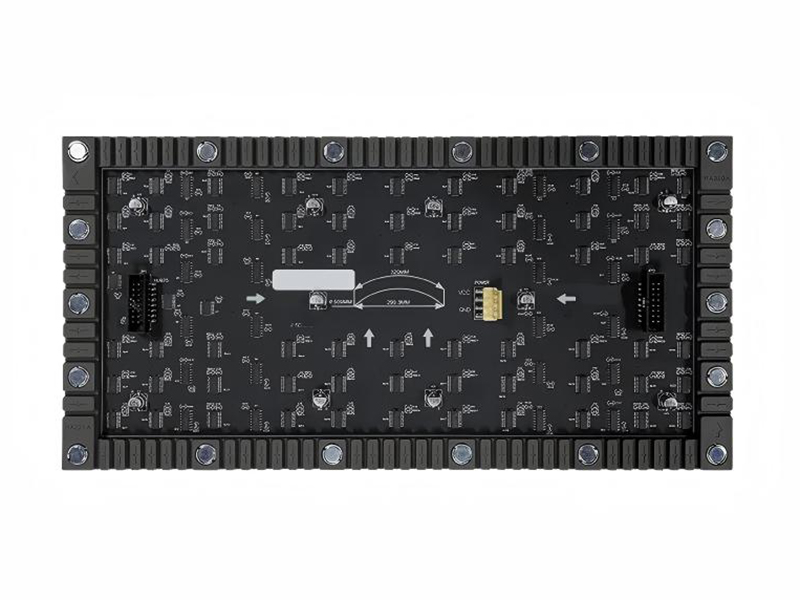

SMD P1.53 Flexible LED Module

A high-performance flexible LED solution designed to deliver sharp visuals at an optimal balance of resolution and value. Its 1.53mm pixel pitch enables clear, detailed images for both standard and creative display applications.

Parâmetros do produto

  • marca :

    Hoozoe

  • Modelo :

    SMD P1.53 Flexible LED Module

  • Pedido (MOQ) :

    80 pcs

  • Pagamento :

    TT

  • Origem do produto :

    Zhangzhou Fujian

  • Cor :

    Full color

  • Porto de embarque :

    Xiamen

  • Tempo de espera :

    7-15 days

  • Peso :

    256g
FAÇA SUA CONSULTA AGORA

Features



  • Fine Pixel Pitch: A 1.53mm pixel pitch provides excellent image clarity for mid-to-close viewing distances (typically 3-8 meters), balancing high definition with cost-efficiency.



  • Flexible & Adaptable: The bendable module design allows for smooth installation on curved surfaces and architectural features, unlocking creative possibilities beyond flat screens.



  • Stable Visual Performance: Driven by a high refresh rate (≥3840Hz), it effectively eliminates flicker and scan lines for smooth video capture and playback. Factory calibration ensures consistent brightness and color across the display.



  • Reliable & User-Friendly: Lightweight modular construction supports fast installation and easy front/rear maintenance. Designed for stability in controlled indoor environments.



  • Ideal for: Corporate lobbies, retail media walls, broadcast studios, control rooms, event stages, and other premium installations requiring flexible formats and reliable, high-quality visuals.





Parameter



  Parameter Name Product Parameter

Module		 Module Name P1.538

Module Size

 320*160mm

Pixel Pitch

 1.538mm

Pixel Density

 432640 Dots/㎡

 Pixel Composition

 1R1G1B
Package Mode SMD1212
Resolution 208x104=21632 Dots

Module Max Power

 ≤15 W

Module thickness

 7.6mm

Weight

 0.256 Kg

Drive Mode

 constant current driver

Scan Type

 1/52 scan
 Port Type HUB75B

Brightness

 ≥500 cd/㎡

Viewing Angle

 160°(W) 120°(H)

Average Power

 270 W/㎡

Max Power

 ≤650 W/㎡

Refresh frequency

 ≥3840Hz
