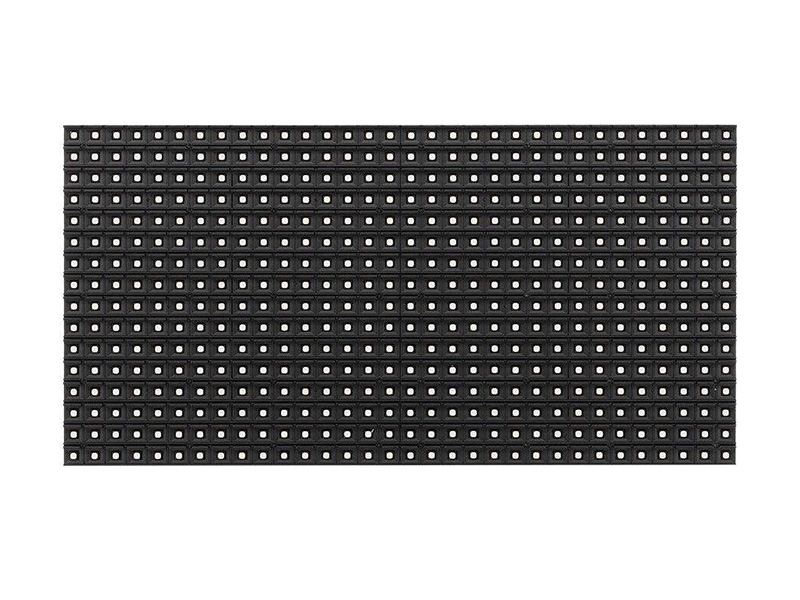

A high-performance monochrome display module engineered for reliable, long-distance information display in functional and public applications. With a 10mm pixel pitch and high-brightness red LEDs, it delivers excellent readability and operational stability in both indoor and sheltered outdoor environments.
marca :
HoozoeModelo :
P10 SMD Monochrome LED Red ModulePedido (MOQ) :
80 pcsPagamento :
TTOrigem do produto :
ZhangzhouCor :
RedPorto de embarque :
XiamenTempo de espera :
7-15 daysPeso :
230Features
Clear Long-Range Display: A 10mm pixel pitch is optimized for crisp text and simple graphics at viewing distances beyond 15 meters, ensuring critical information is clearly visible.
High-Brightness Red LEDs: Employs dedicated red LEDs to produce sharp, eye-catching monochrome content with high contrast, ideal for status indicators, warning signs, and numeric displays.
Durable & Reliable Design: Features a sturdy construction and stable SMD packaging for long-term operational reliability. Designed for continuous operation with consistent performance.
Easy Integration & Maintenance: Simple modular design allows for straightforward assembly into large-scale panels and supports easy module replacement, minimizing maintenance time and cost.

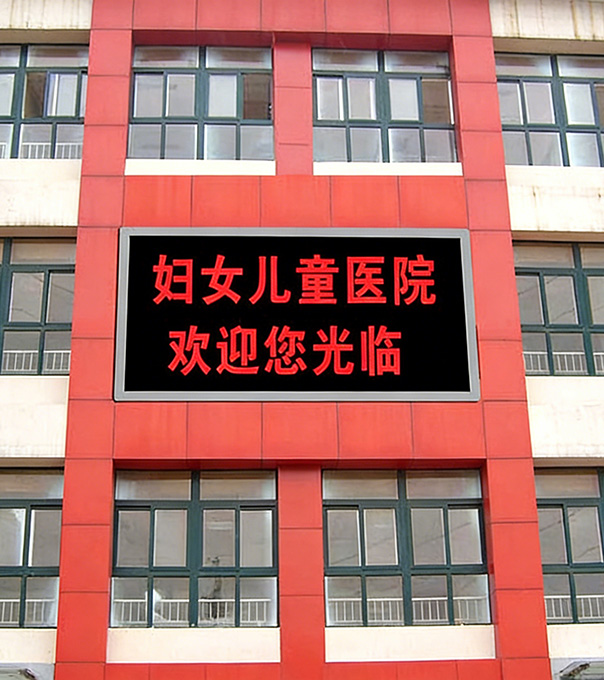

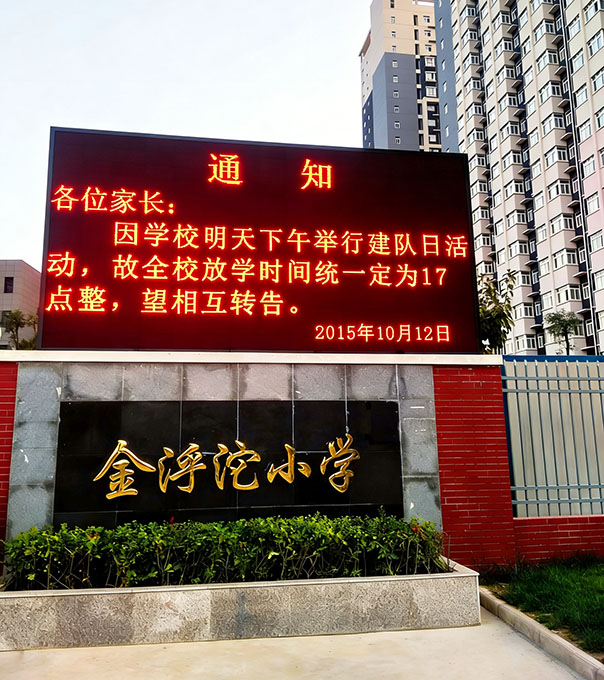

Ideal for: Industrial process control boards, transportation information screens (bus/train schedules, parking guidance), public service announcement displays, warehouse stock indicators, and other applications requiring clear, reliable, and single-color information presentation.
Parameter
| Parameter Name | Product Parameter | Product Parameter | |
| Model Name | Single Red 2835 high brightness | Single Red 2835 | |
| Screen | Maximum power consumption | 340 W/㎡ | 350 W/㎡ |
|
Usage environment |
Outdoor | ||
|
Viewing distance |
≥10m | ||
|
Blind spot rate |
Less than 0.03% | ||
| Brightness | ≥ 1700 cd/㎡ | ≥700 cd/㎡ | |
| Average power consumption of the screen | 150 W/㎡ | 150- 200 W/㎡ | |
| Horizontal viewing angle of screen | 85±15 degree | ||
|
Vertical viewing angle of the screen |
45±10 degree | ||
| Module |
Pixel Pitch |
10mm | |
|
Pixel Density |
10000 Dots/㎡ | ||
| Resolution | 32x16=512 Dots | ||
| Structural characteristics | Integrated light drive system | ||
| Pixel composition | 1R | ||
| Drive mode | 1/4scan constant current drive | ||
| Input voltage | 4.5-5.5 V | ||
|
Kit materials |
Polycarbonate PC material | ||
| Weight | 230 g | 200 g | |
| Power of unit module | 17 W | 15W | |
| Size (Long, Wide, and Thick) | 320*160*15（mm) | ||
| Maximum current | 3.4 A | 3 A | |
|
Number of modules supported by 200w power supply |
<12 pieces | <15 pieces | |
|
System |
Frame Frequency |
>60 frames per second | |
|
Refresh frequency |
≧ 80HZ | ||
|
Control mode |
Computer control, one-to-one correspondence point by point, video synchronization, real-time display |
||
|
Brightness adjustment |
256 level manual/automatic |
||
| Driver chip mode | |||
