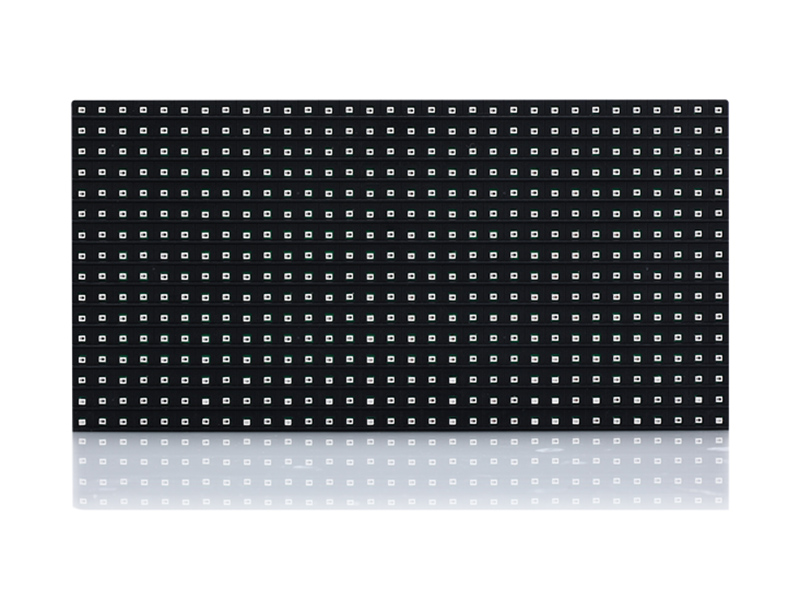

A dedicated monochrome display module delivering high-brightness white light for clear, high-contrast information display in functional and public settings. Its 10mm pixel pitch and uniform white output ensure excellent long-distance readability and visual impact.
marca :
HoozoeModelo :
P10 SMD Monochrome LED White ModulePedido (MOQ) :
80 pcsPagamento :
TTOrigem do produto :
ZhangzhouCor :
WhitePorto de embarque :
XiamenTempo de espera :
7-15 daysPeso :
230gFeatures
Optimized for Clarity: A 10mm pixel pitch provides crisp, sharp display of text, symbols, and graphics at viewing distances typically beyond 15 meters, making critical information highly legible.
High-Brightness White Output: Utilizes dedicated white LEDs to produce bright, consistent, and neutral illumination, offering superior contrast for message display and background lighting applications.
Stable & Consistent Performance: Built with reliable SMD packaging and designed for continuous operation, ensuring long-term stability and uniform brightness across the entire display surface.
Simple Integration & Maintenance: Features a straightforward modular design for easy assembly into large-scale panels and supports convenient module replacement, reducing system downtime and maintenance complexity.
Ideal for: Public information boards, transportation schedule displays, industrial status indicators, high-contrast warning or guidance signs, and any application requiring a clear, bright, and monochromatic white light display.
Parameter
| Parameter Name | Product Parameter | Product Parameter | |
| Model Name | Single White high brightness | Single White | |
| Screen | Maximum power consumption | 350 W/㎡ | 350 W/㎡ |
|
Usage environment |
Outdoor | ||
|
Viewing distance |
≥10m | ||
|
Blind spot rate |
Less than 0.03% | ||
| Brightness | ≥ 8000-10000 cd/㎡ | ≥3000 cd/㎡ | |
| Average power consumption of the screen | 150-200 W/㎡ | 260- 300 W/㎡ | |
| Horizontal viewing angle of screen | 140 degree | 120±20 degree | |
|
Vertical viewing angle of the screen |
140 degree | 120±20 degree | |
| Module |
Pixel Pitch |
10mm | |
|
Pixel Density |
10000 Dots/㎡ | ||
| Resolution | 32x16=512 Dots | ||

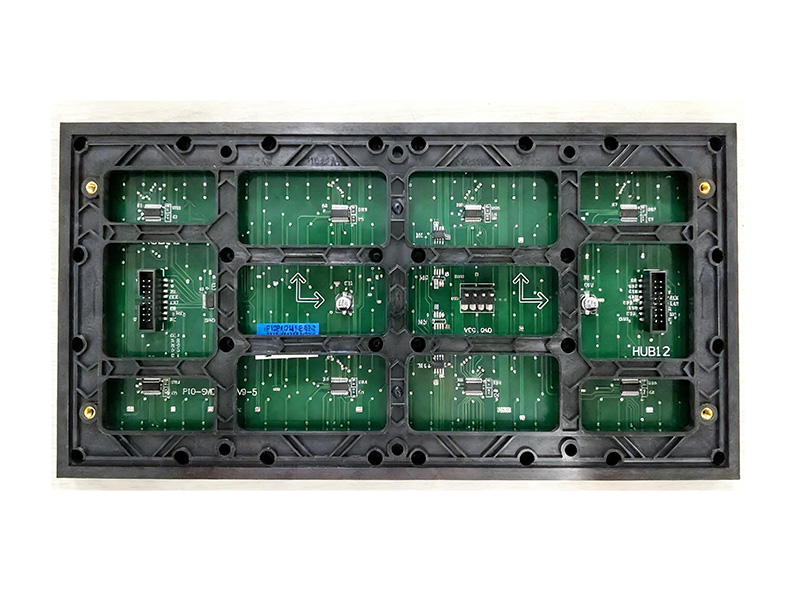

| Structural characteristics | Integrated light drive system | ||
| Pixel composition | 1R | ||
| Drive mode | 1/4scan constant current drive | ||
| Input voltage | 4.5-5.5 V | ||
|
Kit materials |
Polycarbonate PC material | ||
| Weight | 230 g | ||
| Power of unit module | 15 W | ||
| Size (Long, Wide, and Thick) | 320*160*15（mm) | ||
| Maximum current | 3.4 A | 3 A | |
|
Number of modules supported by 200w power supply |
<12 pieces | ||
|
System |
Frame Frequency |
>60 frames per second | |
|
Refresh frequency |
≧ 80HZ | ||
|
Control mode |
Computer control, one-to-one correspondence point by point, video synchronization, real-time display |
||
|
Brightness adjustment |
256 level manual/automatic |
||
| Driver chip mode | |||
