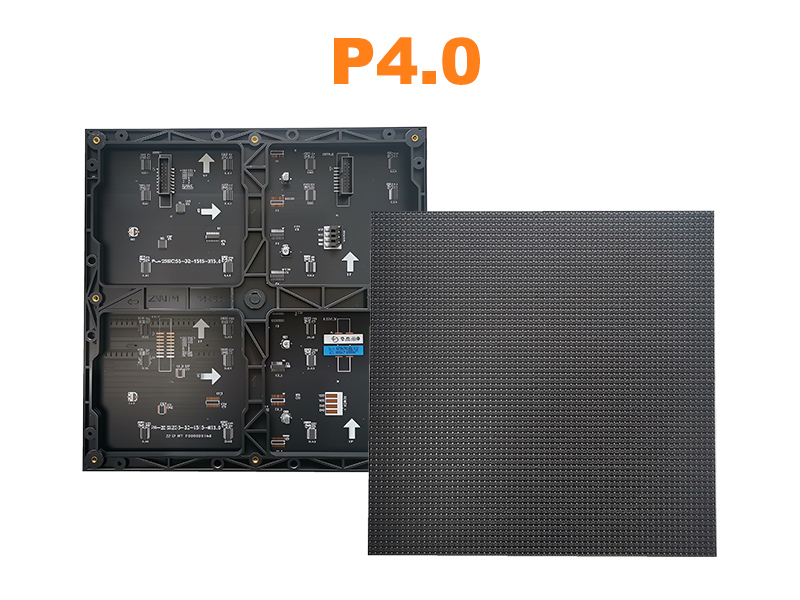

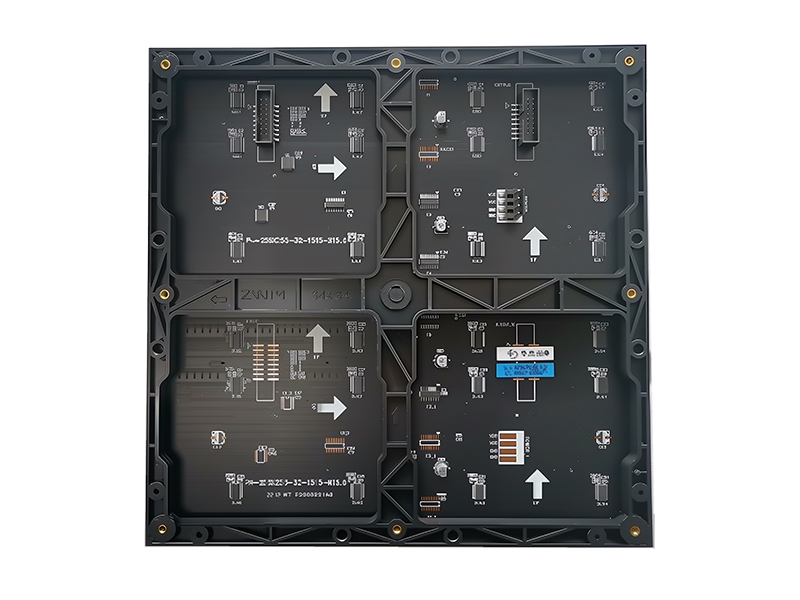

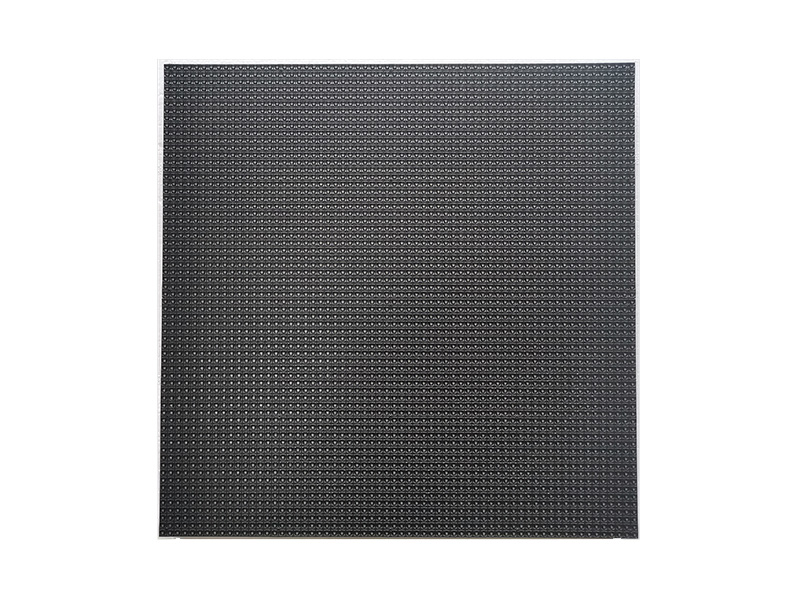

The SMD Indoor P4 LED Module(size:256*256*13.5mm) is a reliable and cost-effective display solution, delivering exceptional value for large-scale visual installations. With a clear 4mm pixel pitch, it produces bright, high-impact visuals suitable for medium- to long-range viewing. Designed for seamless integration and consistent performance, it is ideal for creating vibrant video walls in conference halls, auditoriums, retail environments, and event venues.
marca :
HoozoeModelo :
SMD Indoor P4 LED Full Color ModulePedido (MOQ) :
50Pagamento :
TTOrigem do produto :
ZhangzhouCor :
Full colorPorto de embarque :
Xiamen/ShenzhenTempo de espera :
10 daysPeso :
460gFeatures
Pixel Pitch
Featuring a precise 4.0 mm pixel pitch in a compact 256×256 mm square design, this module delivers an optimal balance of visual clarity, seamless splicing, and project cost-efficiency—making it an ideal, economical building block for large-scale indoor video walls and display installations.
High Resolution & Detail
Its fine pixel arrangement ensures sharp, vibrant, and highly legible visuals, capable of rendering high-definition video content, dynamic graphics, and detailed informational displays with reliable quality across intended viewing ranges.
Optimal Viewing Distance
Engineered for mid- to long-range indoor viewing, it offers a comfortable and immersive visual experience by effectively minimizing visible pixelation, suitable for audiences positioned approximately 4 meters to beyond 15 meters.
Reliable Technology
Utilizing durable Surface-Mount Device (SMD) packaging and undergoing rigorous factory calibration, the module guarantees consistent color reproduction, excellent brightness uniformity, and long-term operational stability for dependable performance.
Typical Applications
Ideal for constructing seamless video walls and large-format displays in environments such as corporate lobbies, conference centers, exhibition halls, retail venues, studios, and other indoor settings requiring high visual impact and reliable performance.
Parameter
| Parameter Name | Product Parameter | |
| SMD 1515 | ||
| Screen | Maximum power consumption | <260 W/㎡ |
|
Usage environment |
Indoor | |
|
Viewing distance |
≥4.0m | |
|
Blind spot rate |
Less than 0.03% | |
| Brightness | ≥ 300 cd/㎡ | |
| Average power consumption of the screen | 150-170 W/㎡ | |
| Horizontal viewing angle of screen | 120±10 degree | |
|
Vertical viewing angle of the screen |
120±10 degree | |
| Module |
Pixel Pitch |
4.0mm |
|
Pixel Density |
62500 Dots/㎡ | |
| Resolution | 64x64=4096 Dots | |
| Structural characteristics | Integrated light drive system | |
| Pixel composition | 1R1G1B | |
| Drive mode | 1/32 scan constant current drive | |
| Input voltage | 4.8-5.5V | |
|
Kit materials |
Polycarbonate PC material | |
| Weight | 460 g | |
| Power of unit module | <17.5 W | |
| Size (Long, Wide, and Thick) | 256*256*13.5（mm) | |
| Maximum current | <3.5 A | |
|
Use 4.2V/5V Switching Power Supply with Load Quantity |
≤10 pieces P4.0 full-color unit boards | |
|
System |
Frame Frequency |
>60 frames per second |
|
Refresh frequency |
Carrying 64 points at 2880Hz or Carrying 128 points at 1440Hz |
|
|
Control mode |
Computer control, one-to-one correspondence point by point, video synchronization, real-time display |
|
|
Brightness adjustment |
256 level manual/automatic |
|
| Driver chip mode | Buffer 74HC245, decoding line tube 7258, dual latch constant current IC | |
